Sunraj Industries Imports and Supplies thin wall Seam Welded Tubes, which are widely used in the production of Radiators.
These are produce by finest machine of Mill Masters. These Tubes are produced by high frequency induction welding process. These are design to produce Flat Oval Tubes in variety of material like Brass and Cuprobraze Tubes.

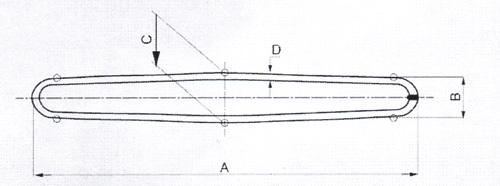

| High Frequency Welded Brass Tube |
||||
| Product No. | A Tube Width ± 0.05 |
B Tube Height ± 0.05 |
C Tube Crown + 0.10 |
D Tube Thick |
| WBT-1 | 12.22 | 2.54 | 2.65 | 0.127 |
| WBT-2 | 12.22 | 2.54 | 2.65 | 0.15 |
| WBT-3 | 12.22 | 2.54 | 2.65 | 0.20 |
| WBT-4 | 12.22 | 2.54 | 2.65 | 0.22 |
| WBT-5 | 18.50 | 2.45 | 2.65 | 0.127 |
| WBT-6 | 18.50 | 2.45 | 2.65 | 0.15 |
| WBT-7 | 18.50 | 2.45 | 2.65 | 0.20 |
| WBT-8 | 18.50 | 2.45 | 2.65 | 0.30 |
| WBT-9 | 18.50 | 2.45 | 2.65 | 0.40 |
| WBT-10 | 18.34 | 3.34 | 3.50 | 0.40 |
| Material Specification:- 65/35 Brass Alloy | ||||
